Smart Water Pressure Management

AVK Smart Water Pressure Management Device (PMD) in one of UK’s Biggest Pumping Stations

Kielder Water is the biggest artificial lake in the United Kingdom by capacity. Its principal role is to underpin the Kielder Transfer System where water is taken from the River Tyne and transferred to the Rivers Derwent, Wear and Tees.

The nearby Pumping Station, the largest in the UK when it was built in 1979, is the facility that transfers the water via a tunnel from the Tyne to the other rivers. The water enters the pumping station at 19 bar, the same pressure you would experience at a water depth of 195m.

The initial step is to abate the pressure, and this is done by an AVK Series 872 needle valve (DN200, PN25) which abate the pressure from 19 bar to 10 bar.

Digital Pressure Management

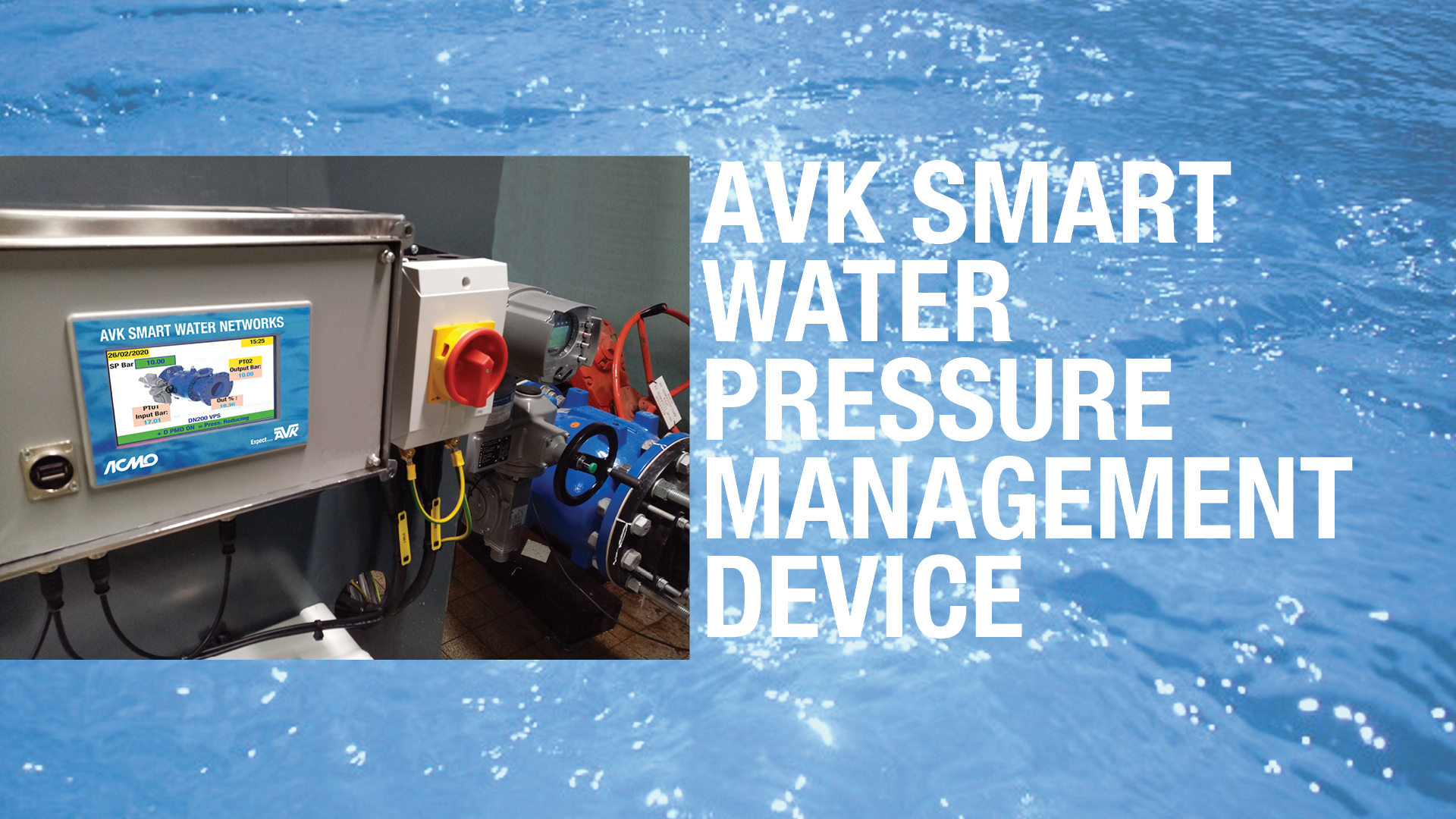

The Series 872 needle valve has recently been installed with an AVK Smart Water Pressure Management Device (PMD). AVK believes it is the first device of its type to be installed on the UK water network.

Local or Remote Control

The AVK Smart Water PMD can be controlled and operate locally or remotely. In the case of the pumping station, the PMD is initially being managed locally with the plan being to move towards remote communication via ethernet Modbus, a standard communication protocol for communicating industrial devices.

Real Time Monitoring

The challenging performance metrics imposed on water companies by PR19, especially with regards to leakage, resilience and customer service, have increased the focus on the convenience of holistic approaches to network and systems management. It is envisaged that smart devices located across the network sending and receiving data and instructions via the Internet of Things (IoT) will enable water companies to respond to system in real time.

Smart Solutions

The AVK Smart Water PMD is just one of a portfolio of smart water network products being launched by AVK during 2020. It places AVK Smart Water in the vanguard of companies developing solutions for water companies in this frontier technology.

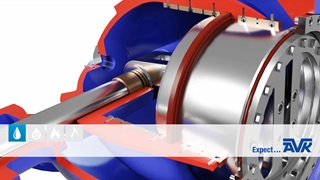

Product animation of AVK needle valve
