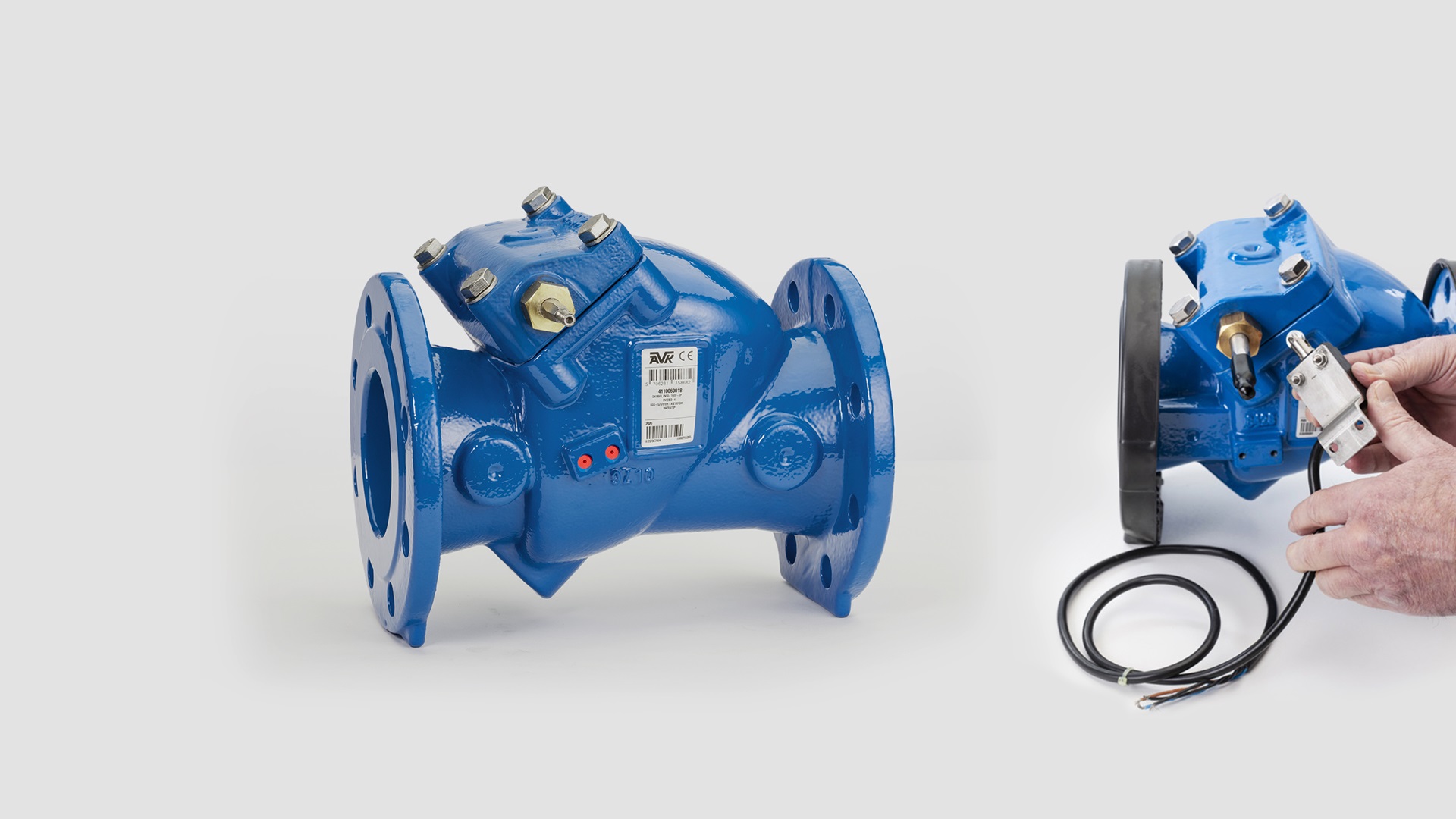

AVK swing check valve variant prepared for limit switch

The new variant is equipped with a limit switch to indicate the closed position. 04-12-2022

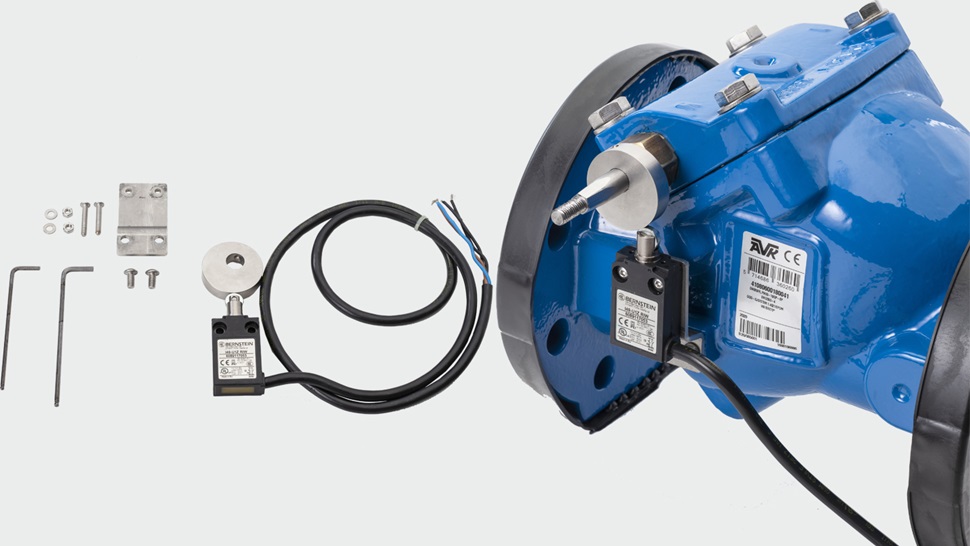

An eccentric cam disc mounted with a set screw on the shaft for lever and weight activates the limit switch. The set screw adjusts the position of the cam disc that generates the signal.It does not make sense to receive an open position signal because the disc will move slightly up and down in the flow.

Kits that include a mounting bracket and limit switch are available as accessories.

Swing check valves can be installed with or without a lever and weight.
